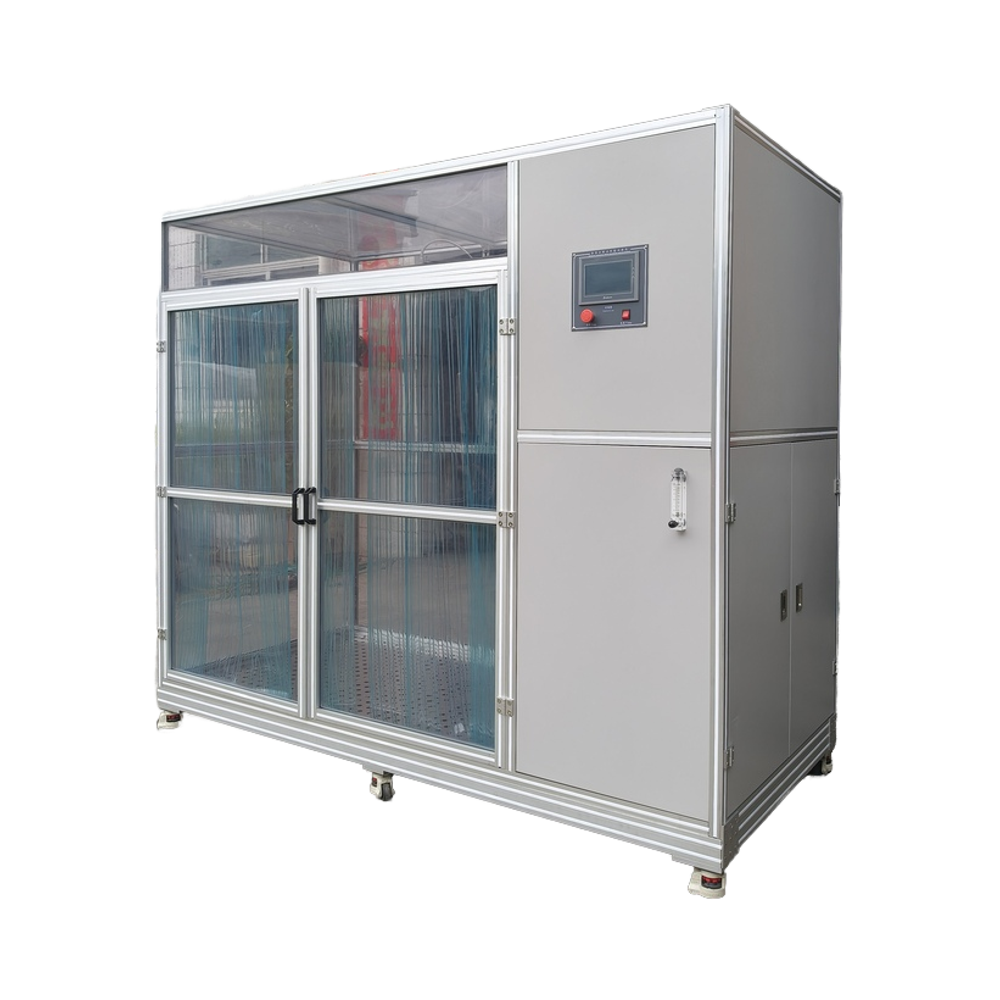

Customized Bathroom Countertop Water Resistance Test Machine

Name: Customized Bathroom Countertop Water Resistance Test Machine
Brand: HAIDA
Price: 1 USD

Quality Customized Bathroom Countertop Water Resistance Test Machine for sale

Type : Testing Machine

Brand Name : HAIDA

Place of Origin : Guangdong, China

Application : Tissue Paper Test

customized support : OEM, ODM

power : 220V 50HZ

Protection Class : /

Voltage : 220 V

warranty : 1 Year

Logo/graphic design : Hot Stamping, SCREEN PRINTING

Test station : 2 stations

Number of tests : 0-999999 times can be set

Frequency of tests : 5-15 times/min

Opening and closing angle : 0-120° can be set

Opening pause time : 0.1-99s can be set

Opening method : Cylinder opening

Control Mode : PLC,Touch screen

MOQ : 1

Contact Now

Product Description

5102-HD

Bathroom Countertop Water Resistance Test Machine

This is applicable for testing the performance of washbasin cabinets and shower chairs (stools) under the rainy climate conditions. After testing, the performance of the product is determined to meet the requirements through verification, in order to facilitate the design, improvement, calibration, and factory inspection of the product.

STANDARD GB/T24977-2024 General technical specifications for bathroom furniture -8.4 Water resistance test for washbasin cabinets and shower chairs (stools)

PRODUCT FEATURES

1. Main frame: Adopting a frame structure design, customized thickened aluminum profiles are used to make the frame, which is beautiful and elegant; The outer frame is surrounded by acrylic waterproof material, and the condition of the test sample can be observed at any time. 2. The bottom is equipped with universal casters, which can be easily moved. 3. Using PLC controller to control the action of the instrument, the operation is intuitive and simple 4. The testing time can be set, with one click start, automatic shutdown, and simple intelligence.

Specification

Aluminum alloy frame	Composed of 80 * 80 thick heavy-duty aluminum profiles
Spray head	hole (50-80), hole diameter: ≤ 4.0
Test water temperature	less than 30 ℃
Test flow rate	10L/min -12L/min
Flow rate	10-12L (adjustable)
Testing time	10 minutes
Test height	1500~1800mm (manually adjusted), with a ruler for height positioning
Control mode	PLC control, 7-inch display screen operation
Count	Ø 0~999999 times can be set
Internal dimensions for instrument testing	1800 * 1000 * 2000mm
External dimensions	1900 * 1100 * 2000mm
Power supply	220V 50HZ
Power	1KW
Protection device	water leakage, power outage, short circuit
