HD Sanitary Tapware Flow Rate Test Machine For Precise Flow Measurement And Enhanced Testing Accuracy

Name: HD Sanitary Tapware Flow Rate Test Machine For Precise Flow Measurement And Enhanced Testing Accuracy
Brand: HAIDA
Price: 1 USD

Quality HD Sanitary Tapware Flow Rate Test Machine For Precise Flow Measurement And Enhanced Testing Accuracy for sale

Type : Testing Machine

Brand Name : HAIDA

Place of Origin : Guangdong, China

Application : Tissue Paper Test

customized support : OEM, ODM

power : 220V 50HZ,750W

Protection Class : /

Voltage : 220 V

warranty : 1 Year

Logo/graphic design : Hot Stamping, SCREEN PRINTING

Test station : 1 stations

Test speed : Adjustable from 0 to 30 times per minute (PLC)

Frequency of tests : 5-15 times/min

Opening and closing angle : 0-120° can be set

Opening pause time : 0.1-99s can be set

Opening method : Cylinder opening

Control Mode : PLC,Touch screen

MOQ : 1

Contact Now

Product Description

5072-HD

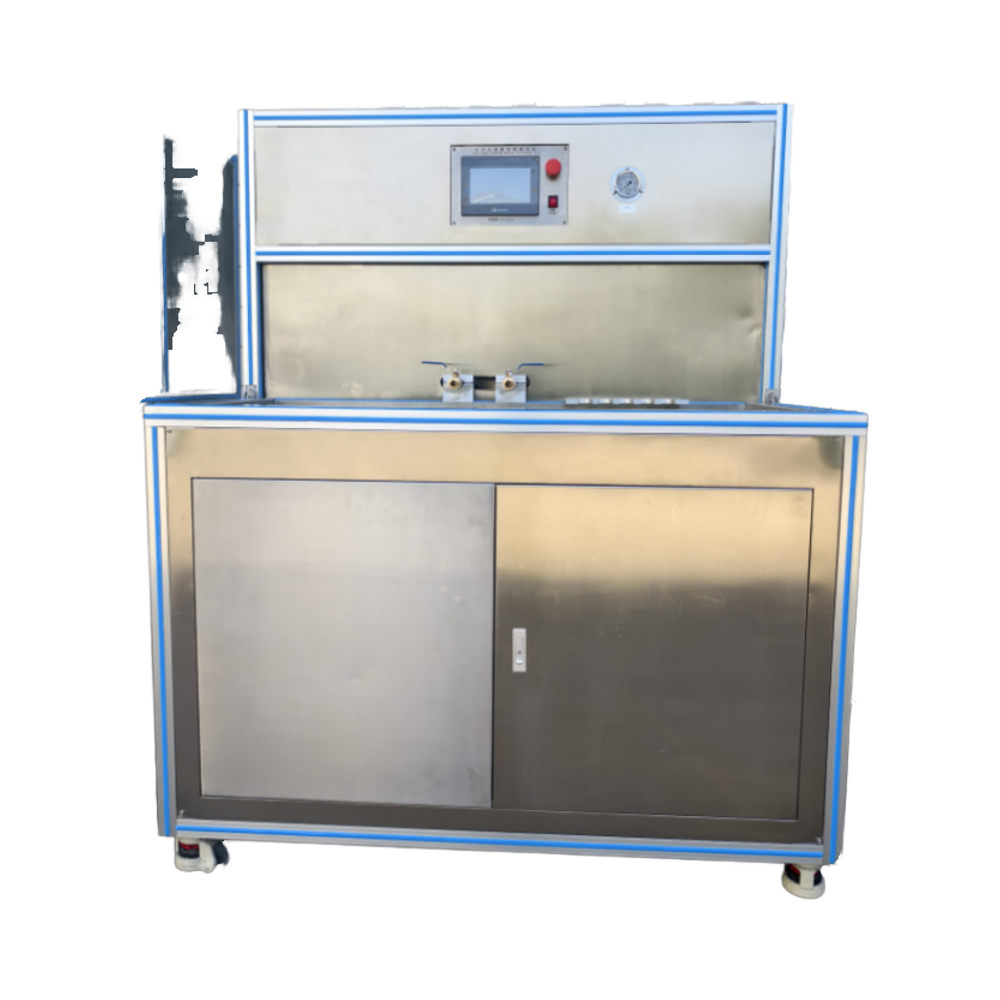

Sanitary tapware flow rate test machine

This machine is mainly designed for faucets to undergo certain flow cycle tests under different temperature changes of hot and cold to detect the product quality.

TEST STANDARD

ASME ,A112.181.1-2005, CSAB125.1-05,GB18145,EN817

MACHINE FEATURES

This machine is composed of imported motors, bearings, copper materials, aluminum materials, PLC programs, 7-inch color touch screens, ball screw transmission and other materials. It is user-friendly, easy to understand, convenient and fast to operate. It is a rare testing device.

Specification

Hot and cold water unit	1 set of 500L
Water tank	Normal temperature water
Flow function	0 to 200PSI can be set, and the flow reading accuracy is greater than 0.01L.
Test sample	one piece
Test working pressure	0-16 BAR pressure.
Working hours	99h59m59s can be set
Return water condition	Water pump. The pressure accuracy is greater than 0.1bar
Control mode	PLC software,7 "color touch screen
Material	304# Stainless steel
Voltage	380V,50HZ
Total power	3KW
Operation features	The input pressure on the machine operation display screen is controlled by MPA or BAR
	The outlet pipe adopts a size of (1 inch), and the built-in (inside the equipment) has two outlets, which are G3/4.
	The water outlet is at the same height as the work surface The equipment is equipped with an automatic water replenishment function, and the water replenishment system uses a float ball for water intake.
	The equipment is equipped with a cleaning system and an additional drainage system (with an additional drainage motor).
