Sanitary Ceramic Load Resistance Test Machine Sanitary Ceramic Load Resistance Testing Equipment High Quality Machine

Name: Sanitary Ceramic Load Resistance Test Machine Sanitary Ceramic Load Resistance Testing Equipment High Quality Machine
Brand: HAIDA
Price: 1 USD

Quality Sanitary Ceramic Load Resistance Test Machine Sanitary Ceramic Load Resistance Testing Equipment High Quality Machine for sale

Type : Testing Machine

Brand Name : HAIDA

Place of Origin : Guangdong, China

Application : Tissue Paper Test

customized support : OEM, ODM

power : 220V 50HZ

Protection Class : /

Voltage : 220 V

warranty : 1 Year

Logo/graphic design : /

Test station : 2 stations

Number of tests : 0-999999 times programmable

Frequency of tests : 5-15 times/min

Opening angle : 0-120° programmable

Opening pause time : 0.1-99s programmable

Push cover position : Intermediate parts

Opening mode : Cylinder

Control mode : PLC

Operation mode : Touch Screen

Air source : 0.4-0.6Mpa

MOQ : 1

Contact Now

Product Description

5061-HD

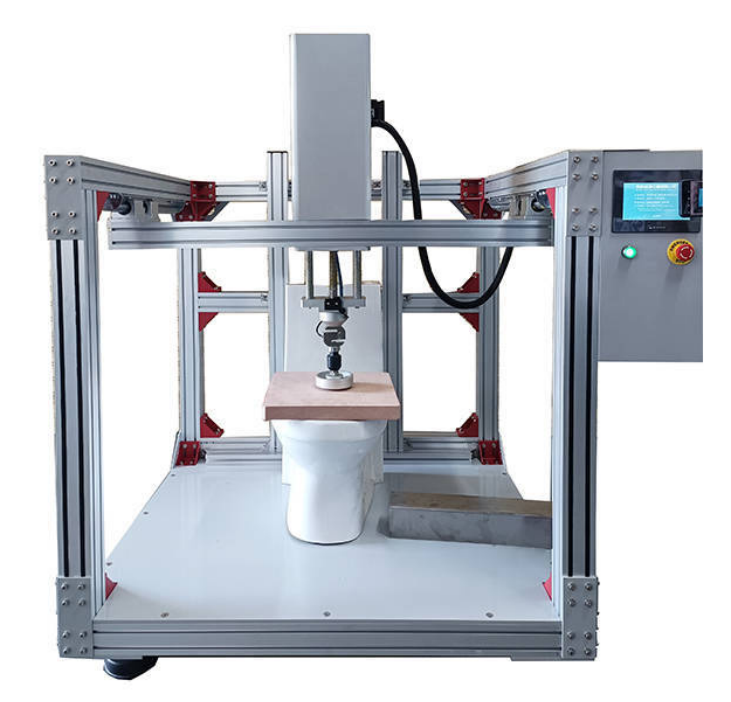

Sanitary Ceramic Load Resistance Test Machine

This machine is mainly used for testing the load-bearing performance of products such as toilets and smart toilets. TEST STANDARD: Sanitary ceramics GB6952-2015 5.7 Load Resistance test; Intelligent toilet seat JG/T285-2010 7.12.2.1 Seat Strength test; Intelligent toilet seat JG/T285-2010 7.12.2.2 Toilet Seat Cover strength; Rack GB 26730-2011 6.28 Rack Safety Load test; Intelligent toilet seat CBMF 15-2016 9.4.5.1 Seat circle strength test; Intelligent toilet seat CBMF 15-2016 9.4.5.2 Cover plate strength test;

Specification

Test product scope	Toilet bowls, smart toilet bowls
Control mode	Touch screen +PLC
Outer material	Aluminum profile + aluminum-plastic sealing plate
Test capacity	0-500KG
Drive	Cylinder
Test fixtures	Each set of tests corresponds to one set of fixtures
Dimension	1300×1100×1300mm(LWH)
Voltage	380V,50HZ,5A
Power	0.5KW

Specification

INDA and EDANA Flushability Testing Guidelines
According to a Code of Practice directive within the Flushability Testing Guidelines, a product that passes all seven tests will be considered flushable. The standards set forth by INDA and EDANA include the following flushability tests:
* FG501.R1(18) Toilet Bowl & Drain Line Clearance Test
* FG502.R1(18) Slosh Box Disintegration Test
* FG503.R1(18) Household Pump Test
* FG504.R1(18) Settling Test
* FG505A.R1(18) Aerobic Biodisintegration Test
* FG506A.R1(18) Anaerobic Biodisintegration Test
* FG507.R1(18) Municipal Sewage Pump Test

Design Features
* Color touch screen display and control, Chinese and English interface, menu-based operation mode.

* Imported rotor flowmeter.
* The core control component adopts ST's 32-bit multi-function motherboard.
